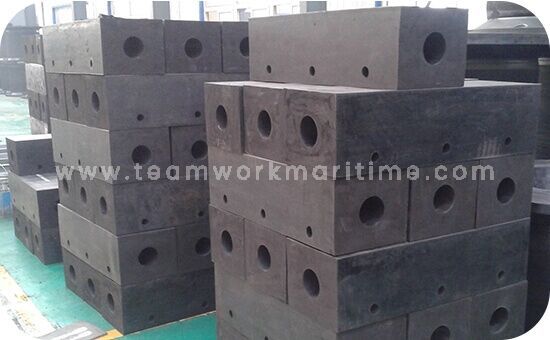

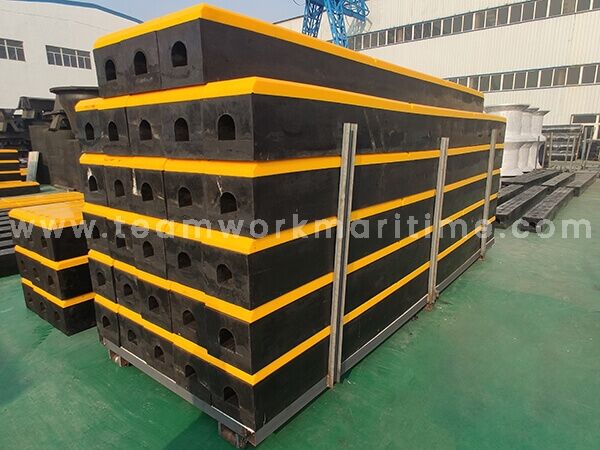

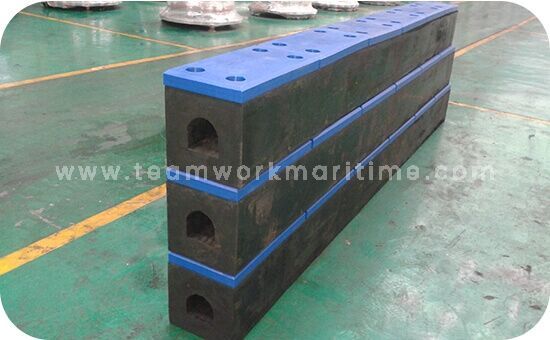

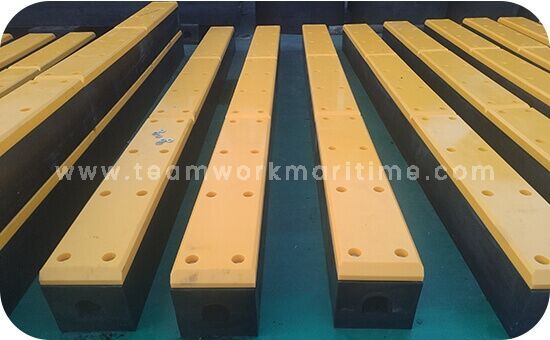

Square Fender

Contact Us

General Details

Specification

Summary

Square Fenders offer similar advantages to D Fenders and are typically used where a stiffer fender is required. The square profile gives these square fenders heavier shoulders which make them ideal for tougher service environments. We TEAMWORK provides a wild range of sizes and lengths for square fenders. It is also available to manufacture to suit specific needs.

Features

● Easy and quick to install

● ldeal for tougher service environments

● Easy to be mounted quay by means of anchor belts

● Can be supplied in long lengths and be cut to length, angle cut at the ends

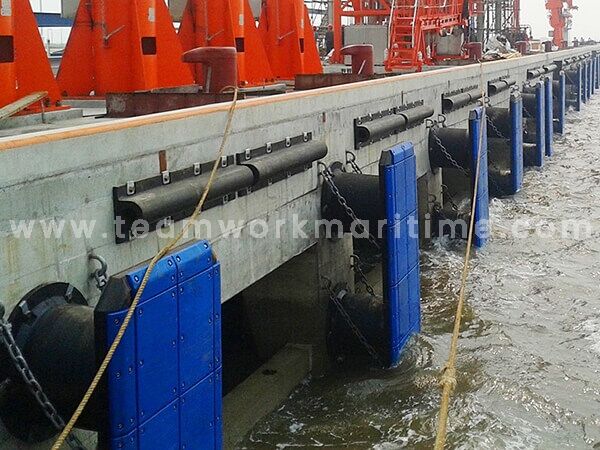

Application

● Smaller jetties and wharves

● Workboats and service craft

● Mooring pontoon protection

● lnland waterways

● General purpose applications

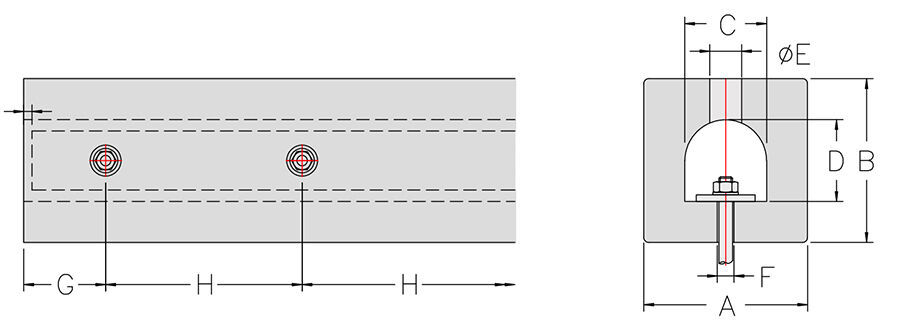

SD Fender

TEAMWORK Square Fender—SD Type
Specification	A	B	C	D	ΦE	ΦF	G	H	Flat bar	Bolt
TW-SD100	100	100	50	45	30	15	100-150	200-300	40×8	M12
TW-SD150	150	150	70	65	40	20	100-150	200-400	60×10	M16
TW-SD200	200	200	90	95	60	30	100-150	300-500	80×14	M24
TW-SD250	250	250	120	120	65	33	100-200	300-500	90×14	M27
TW-SD300	300	300	125	135	65	35	100-200	300-600	110×16	M30
TW-SD350	350	350	175	175	80	38	100-250	300-600	130×16	M33
TW-SD400	400	400	200	200	80	40	100-250	300-600	150×18	M36
TW-SD500	500	500	250	250	95	46	100-250	400-600	180×20	M42

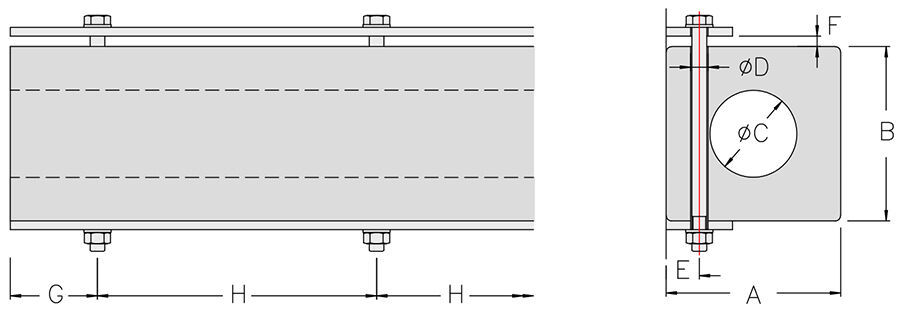

SC Fender

TEAMWORK Square Fender-- SC Type
Specification	A	B	ΦC	ΦD	E	F	G	H	Flat bar	Bolt
TW-SC100	100	100	30	20	25	10	100-150	200-300	50×6	M12
TW-SC150	150	150	65	27	30	12	100-150	200-400	60×8	M16
TW-SC200	200	200	75	30	35	15	100-150	300-500	80×10	M24
TW-SC250	250	250	100	33	45	20	100-200	300-500	100×12	M27
TW-SC300	300	300	125	36	55	25	100-200	300-600	110×12	M30
TW-SC350	350	350	150	40	65	25	100-250	300-600	120×12	M30
TW-SC400	400	400	200	45	75	30	100-250	300-600	130×16	M36
TW-SC500	500	500	250	50	95	30	100-250	400-600	130×20	M42
